SKU: Cup-32B

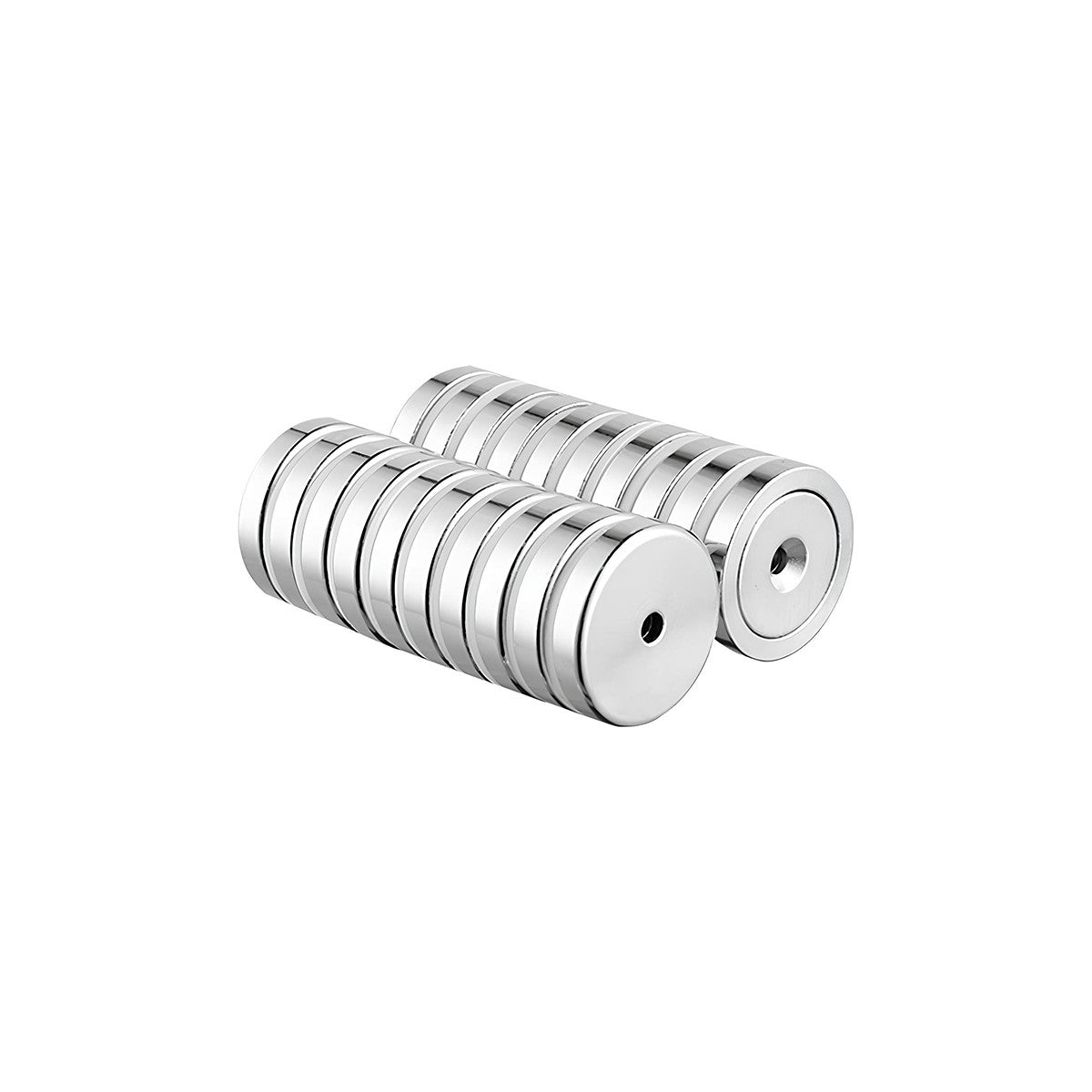

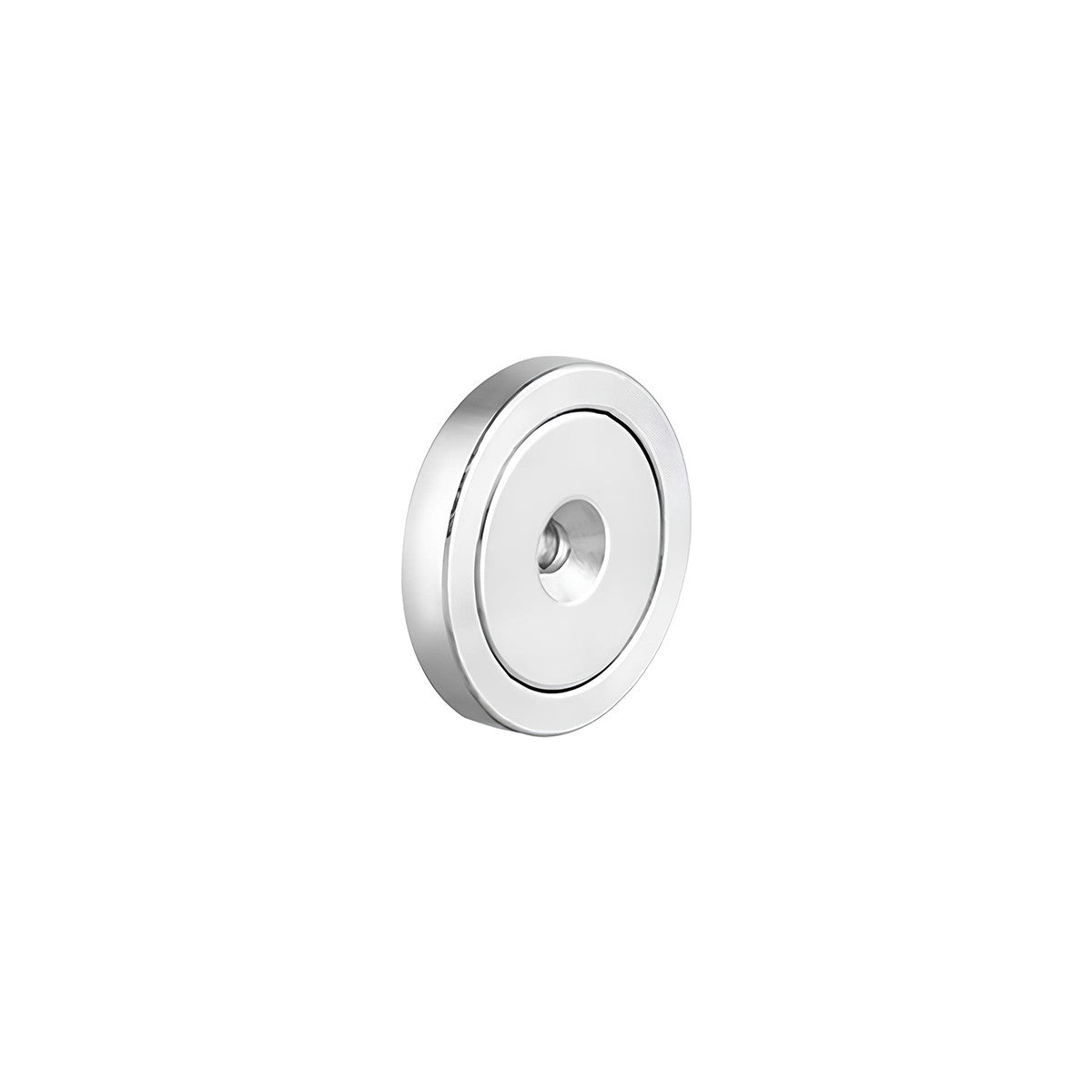

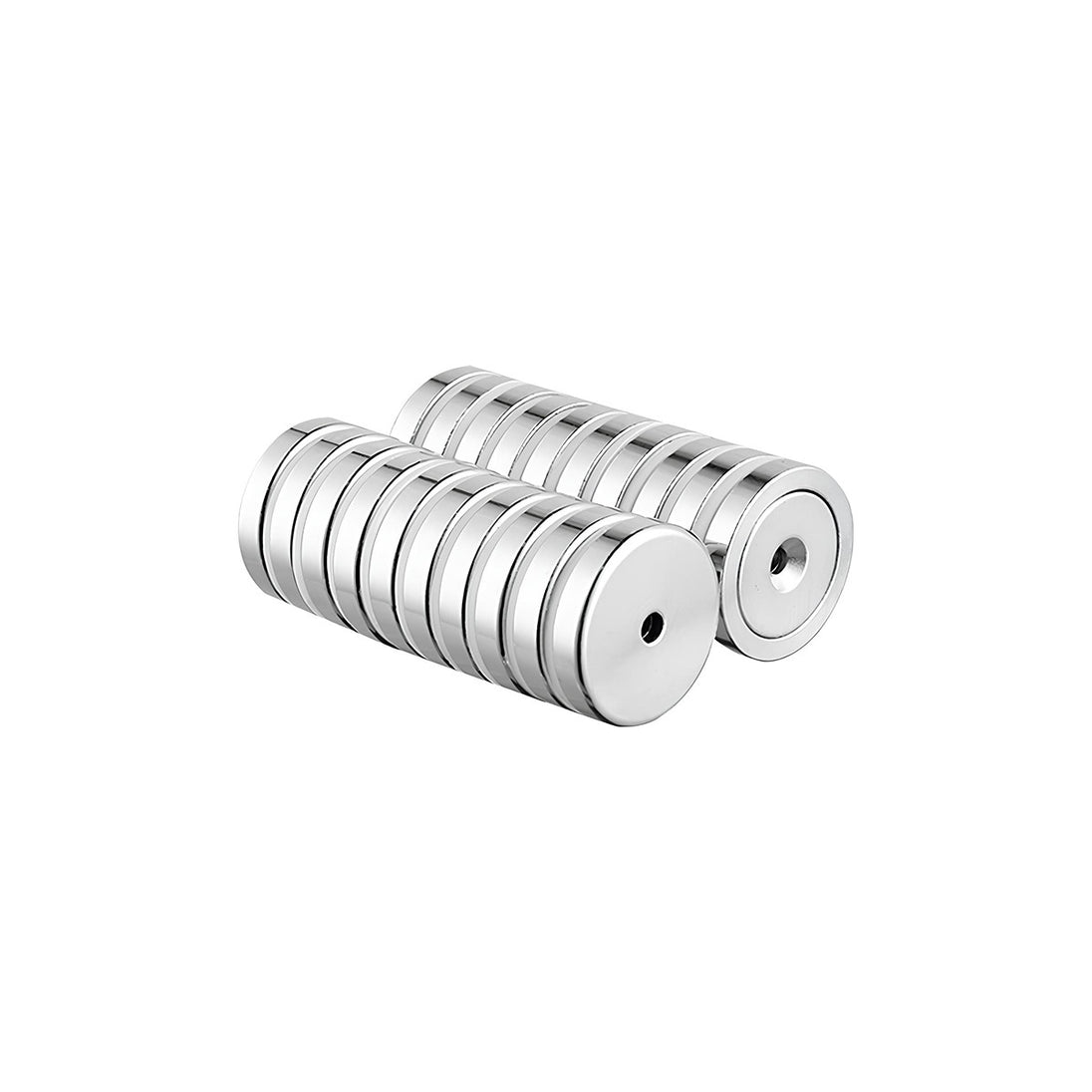

Neodymium Magnetic Mounting Cup Flat Base with Countersunk Hole – 1.26" x 0.24" - Screw included

$ 7.49
$ 3.85
$ 7.49
$ 3.85

∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors

Quick Facts

Attribute Value
Product Type Neodymium Magnetic Mounting Cup
Magnet Material NdFeB Rare Earth Magnet
Shape Round Magnetic Cup with Countersunk Hole

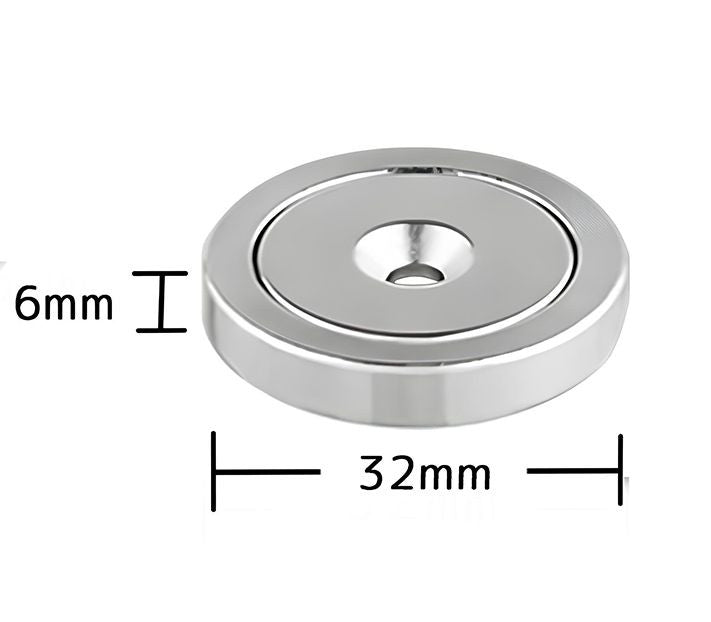

Diameter 32 mm (1.26")
Thickness 6 mm (0.24")
Countersunk Hole Size 8.5 mm x 4.25 mm (0.34" x 0.17")
Compatible Screw Size M4 or #6 Flat Head Screw
Included Hardware M4 Screw Included
Coating Nickel-Copper-Nickel (Ni-Cu-Ni)
Magnetization Through Thickness
Pull Force Approx. 110 lbs (Cup-to-Cup)

Quick Answers

Question Answer
What is this magnetic cup used for? Mounting, fastening, holding, hanging, and retrieving metal objects
How strong is this magnetic cup? Approximate cup-to-cup pull force of 110 lbs
What screw size fits the countersunk hole? M4 or #6 flat head screws
Does the magnet come with mounting hardware? Yes, an M4 screw is included
Is it stronger than ceramic magnetic cups? Yes, neodymium magnetic cups provide significantly greater holding power
Can it be mounted to walls or equipment? Yes, the countersunk hole allows secure mounting with a flat-head screw
What coating does it use? Triple-layer Nickel-Copper-Nickel coating for durability and corrosion resistance

Product Overview

This 32 mm Neodymium Magnetic Mounting Cup combines a powerful NdFeB rare earth magnet with a precision-machined steel cup to maximize holding force and durability. Designed with a countersunk mounting hole, it allows secure installation using a flat-head screw while delivering exceptional magnetic performance.

The steel cup concentrates the magnetic field onto the working surface, significantly increasing holding power compared to standard magnets. The cup also protects the magnet from chipping and mechanical damage, making it ideal for industrial, commercial, workshop, and DIY applications.

What Is a Neodymium Magnetic Cup?

A neodymium magnetic cup, also known as a mounting magnet or pot magnet, consists of a powerful neodymium magnet embedded inside a steel cup.

The steel housing focuses the magnetic field toward the contact surface, creating substantially greater holding force than an exposed magnet of similar size. This design also provides mechanical protection and allows the magnet to be mounted using screws, bolts, or hardware.

Magnetic cups are commonly used for mounting, positioning, securing, hanging, and retrieving metal objects.

How Strong Is This Magnetic Cup?

This 32 mm magnetic cup provides an estimated cup-to-cup pull force of approximately 110 lbs under ideal conditions.

Actual holding strength depends on:

  • Surface material

  • Steel thickness

  • Contact area

  • Mounting orientation

  • Air gap

  • Environmental conditions

For maximum holding force, use the magnetic cup against a clean, flat steel surface.

Technical Specifications

Specification Value
Magnet Type Neodymium Mounting Cup
Diameter 32 mm (1.26")
Thickness 6 mm (0.24")
Countersunk Hole 8.5 mm x 4.25 mm
Compatible Screw M4 or #6 Flat Head
Pull Force Approx. 110 lbs
Coating Nickel-Copper-Nickel
Magnetization Through Thickness
Hardware Included M4 Screw

Neodymium Cup Magnet vs Ceramic Cup Magnet

Feature Neodymium Magnetic Cup Ceramic Magnetic Cup
Magnetic Strength Much Higher Lower
Holding Power Excellent Moderate
Size-to-Strength Ratio Excellent Larger Required
Industrial Applications Ideal Limited
Cost Higher Lower

Neodymium magnetic cups offer significantly greater holding force than ceramic magnetic cups of comparable size, making them the preferred choice for demanding industrial and commercial applications.

Applications by Industry

Industry Common Uses
Manufacturing Fixtures, jigs, positioning systems
Construction Temporary mounting and fastening
Warehousing Signs, labels, and equipment mounting
Automotive Tool holding and positioning
Retail Displays and signage
Workshop & Garage Tool organization and storage
DIY Projects Custom mounting solutions
Maintenance Equipment attachment and retrieval

Common Questions About This Magnetic Cup

What is a magnetic cup used for?

Magnetic cups are commonly used for mounting, fastening, hanging, holding, and retrieving metal objects in industrial, commercial, and workshop environments.

Why is a magnetic cup stronger than a regular magnet?

The steel cup concentrates the magnetic field onto the working surface, increasing the effective holding force and protecting the magnet from damage.

What screw fits the countersunk hole?

This magnetic cup is designed for M4 or #6 flat-head screws. An M4 screw is included.

Can this magnetic cup be mounted permanently?

Yes. The countersunk hole allows secure installation with a flat-head screw or bolt.

Is the magnet protected against corrosion?

Yes. The magnet features a durable Nickel-Copper-Nickel triple-layer coating for improved corrosion resistance.

Can I use this outdoors?

Temporary outdoor use is acceptable. For long-term outdoor exposure, additional protection is recommended.

Is the 110 lb pull force guaranteed?

No. Pull force values are estimates based on ideal testing conditions. Actual results will vary depending on the application and mounting surface.

Why Buy From Applied Magnets?

  • Premium NdFeB rare earth magnets

  • High-strength magnetic cup design

  • Superior holding force compared to ceramic alternatives

  • Durable Nickel-Copper-Nickel coating

  • M4 mounting screw included

  • Competitive pricing and wholesale discounts available

  • Trusted by manufacturers, engineers, contractors, and DIY professionals

Contact Applied Magnets for bulk pricing, wholesale discounts, and custom magnetic mounting solutions.
