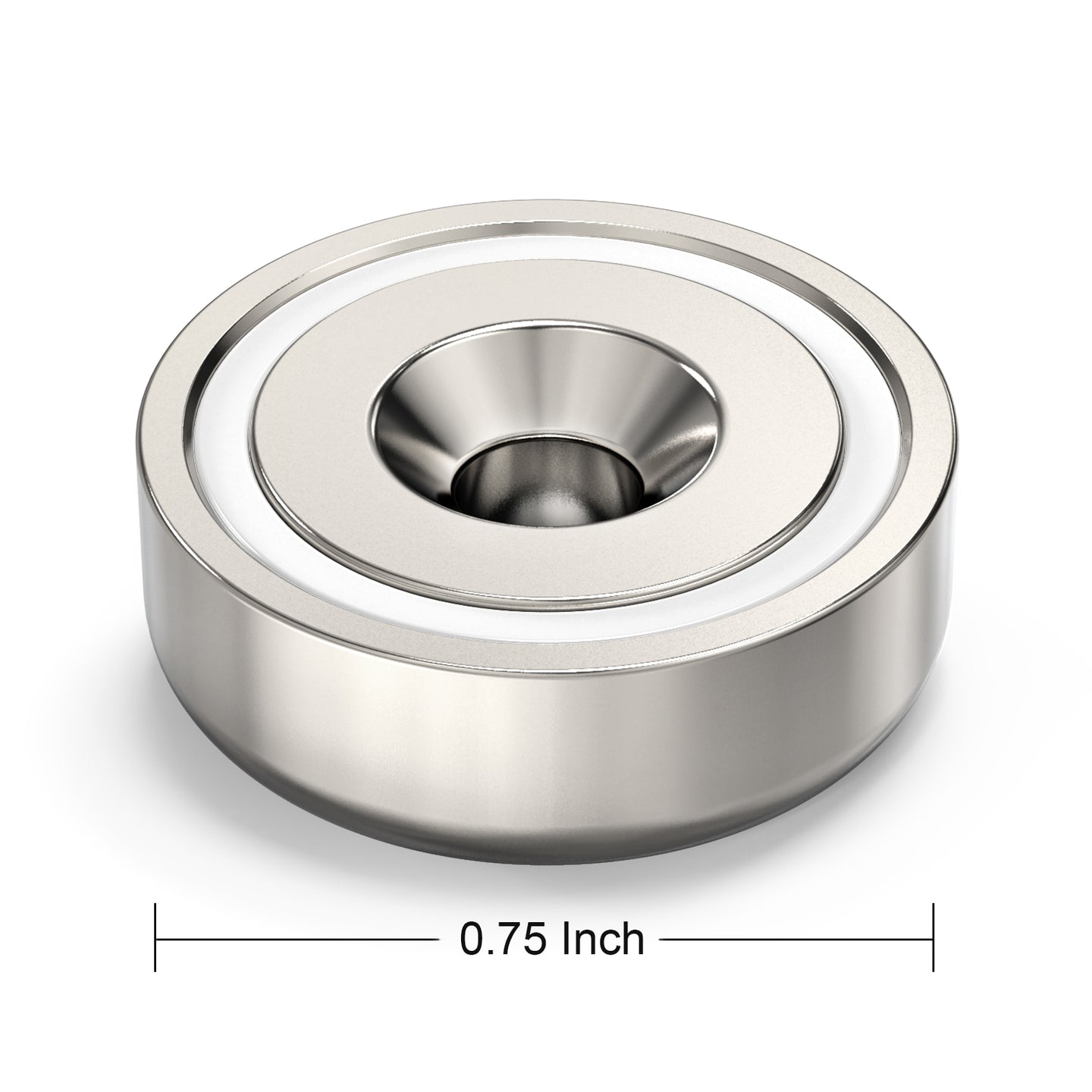

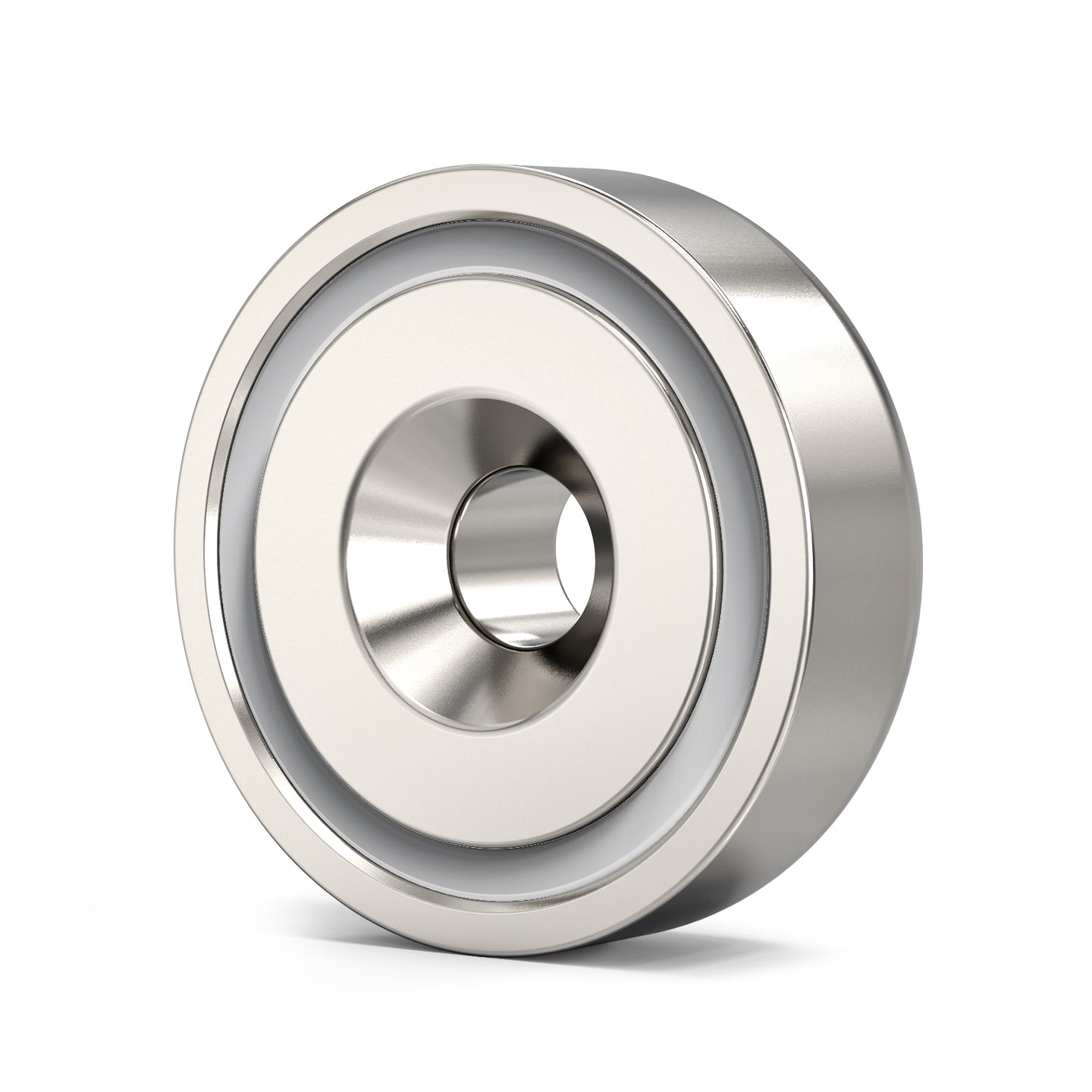

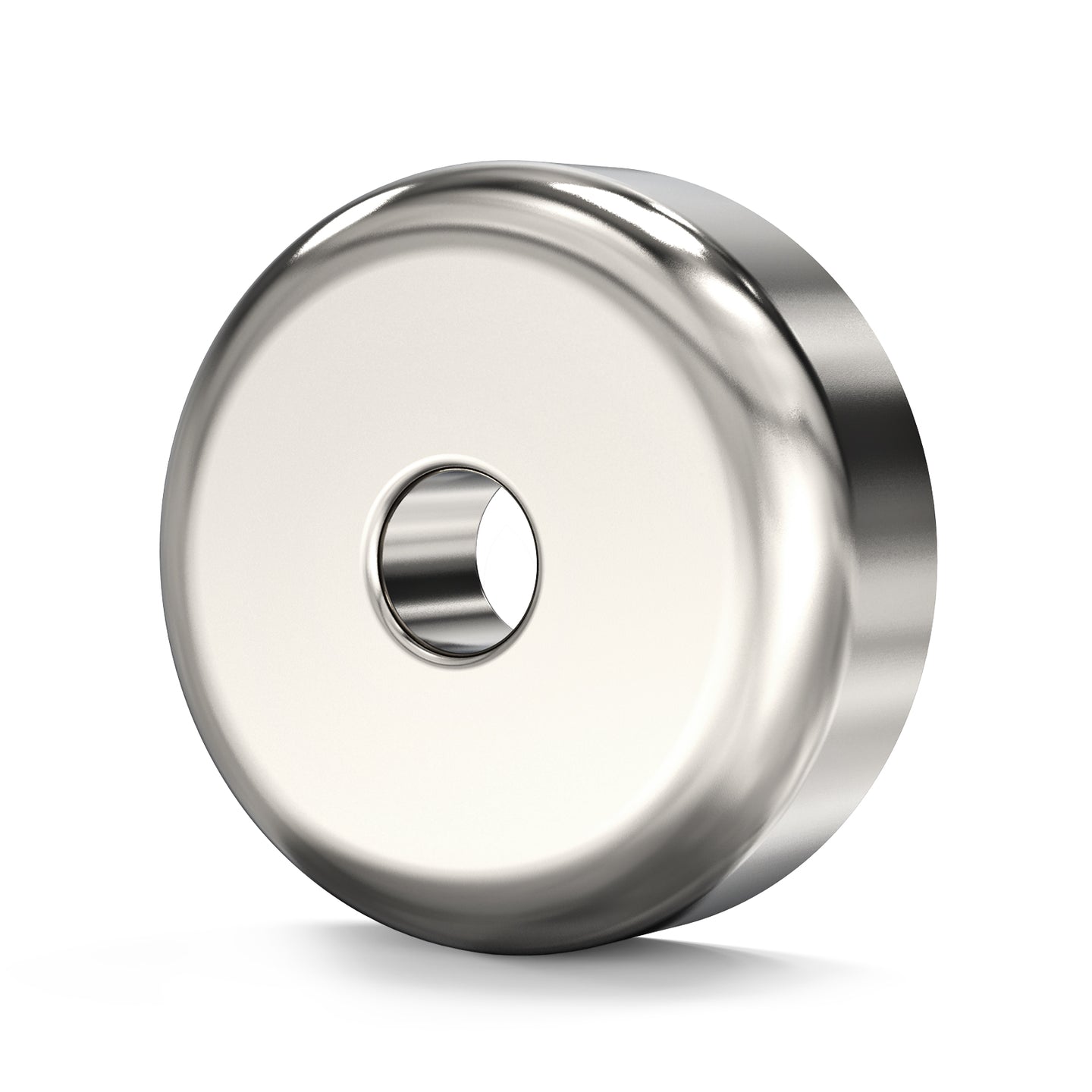

Magnetic Cups are made from neodymium magnets, the world's strongest magnets. Neodymium magnetic cups provide much stronger holding power than ceramic cup magnets.
This handy and useful neodymium magnetic cup has a strong magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.The cup magnet has a countersunk center hole that is perfect for mounting with a flat head screw or bolt.
Neodymium Magnetic Cups Size: 18.9 mm Diameter x 7 mm thick with 8.5mmx4.5mm counter sink hole
0.74" Diameter x 0.28" thick with 0.33" x 0.18" counter sink hole
Work with #6 or #8 flat head screws neodymium magnetic cups are widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.
Countersunk hole is to recess a #8 screw head.
Coating: Nickel
Magnetized through thickness, poles on the flat surface
Estimated Pull Force: 26 lbs
Contact us for magnetic cups wholesale discount
SKU: Cup-20
Magnetic Cups are made from neodymium magnets, the world's strongest magnets. Neodymium magnetic cups provide much stronger holding power than ceramic cup magnets.
This handy and useful neodymium magnetic cup has a strong magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.The cup magnet has a countersunk center hole that is perfect for mounting with a flat head screw or bolt.
Neodymium Magnetic Cups Size: 18.9 mm Diameter x 7 mm thick with 8.5mmx4.5mm counter sink hole
0.74" Diameter x 0.28" thick with 0.33" x 0.18" counter sink hole
Work with #6 or #8 flat head screws neodymium magnetic cups are widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.
Countersunk hole is to recess a #8 screw head.
Coating: Nickel
Magnetized through thickness, poles on the flat surface
Estimated Pull Force: 26 lbs
Contact us for magnetic cups wholesale discount
- Regular price
- $ 2.35
