SKU: ND039-6-TH8
Brand: Applied Magnets

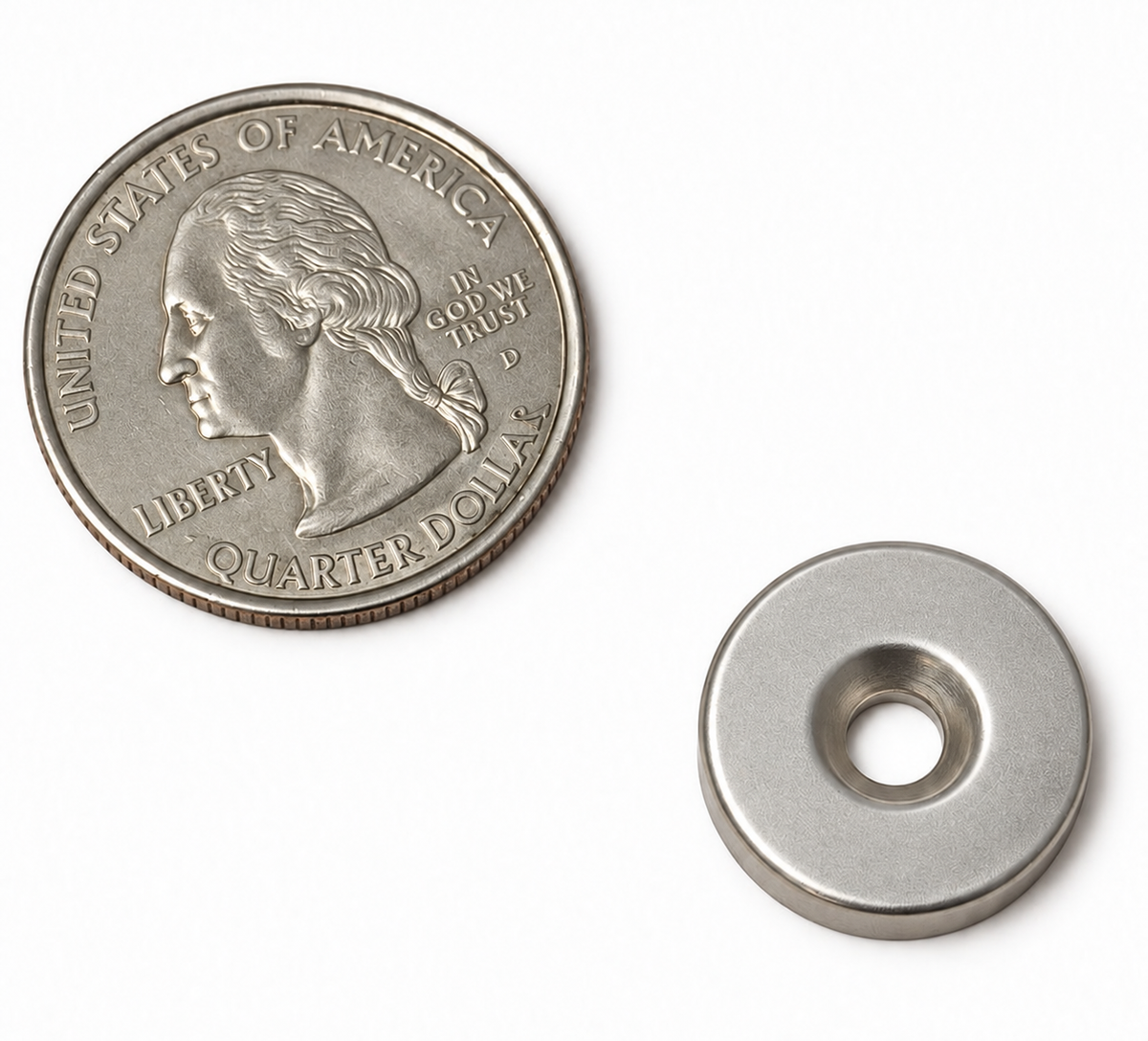

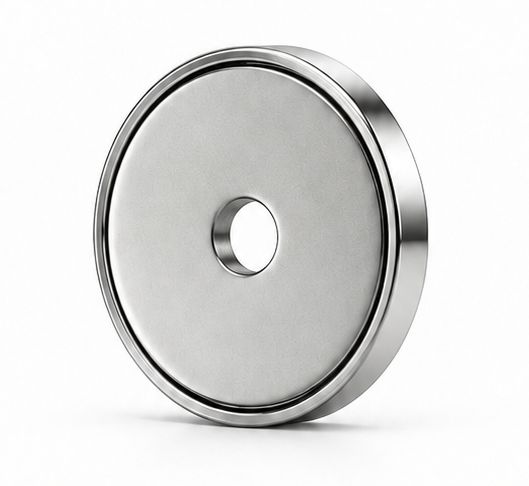

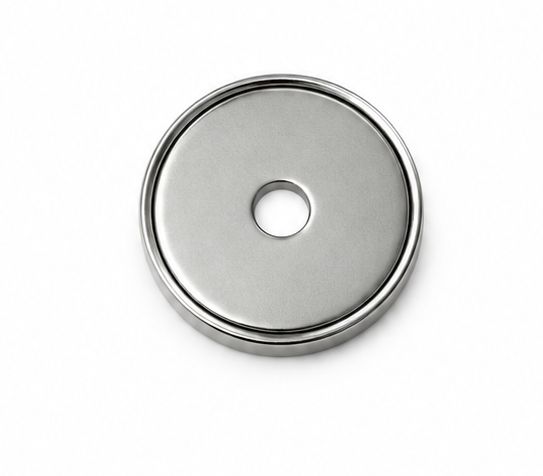

Product type: Steel-encased neodymium disc magnet with countersunk mounting hole

This screw-mount rare earth magnet contains an N52 neodymium core inside a protective steel casing. The casing helps reduce chipping, cracking, and shattering from accidental impacts and mounting pressure.

The countersunk hole accommodates a #4 flat head screw for attachment to wood, panels, fixtures, and other suitable surfaces.

Technical Specifications

Attribute Specification
Magnet material Neodymium-Iron-Boron (NdFeB)
Magnet grade N52
Magnet core diameter 0.625" (5/8")
Magnet core thickness 0.125" (1/8")
Overall assembly diameter 0.65"
Overall assembly thickness 0.14"
Protective housing Steel
Countersunk opening diameter 0.28"
Through-hole diameter 0.16"
Countersink angle 82Β°
Compatible fastener #4 flat head screw
Approximate pull force 9 lbs; actual holding strength varies by application

Suggested Applications

Magnetic cabinet catches, removable panels, display fixtures, workshop organization, and DIY mounting projects.

Installation and Performance

Use the existing countersunk hole. Do not drill into the magnet or overtighten the screw. The steel casing provides added protection, but the assembly is not shatterproof.

The 5/8" x 1/8" dimensions describe the magnet core. Use the larger overall assembly dimensions when planning installation clearance.

Encased assemblies can have less pull force than solid magnets of the same overall dimensions and grade because the casing occupies space that would otherwise contain magnetic material.
