SKU: NB084

Rare Earth Magnets 6 in x 1/8 in x 5/16 in Neodymium Bar N42

$ 12.99
$ 12.99

∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors

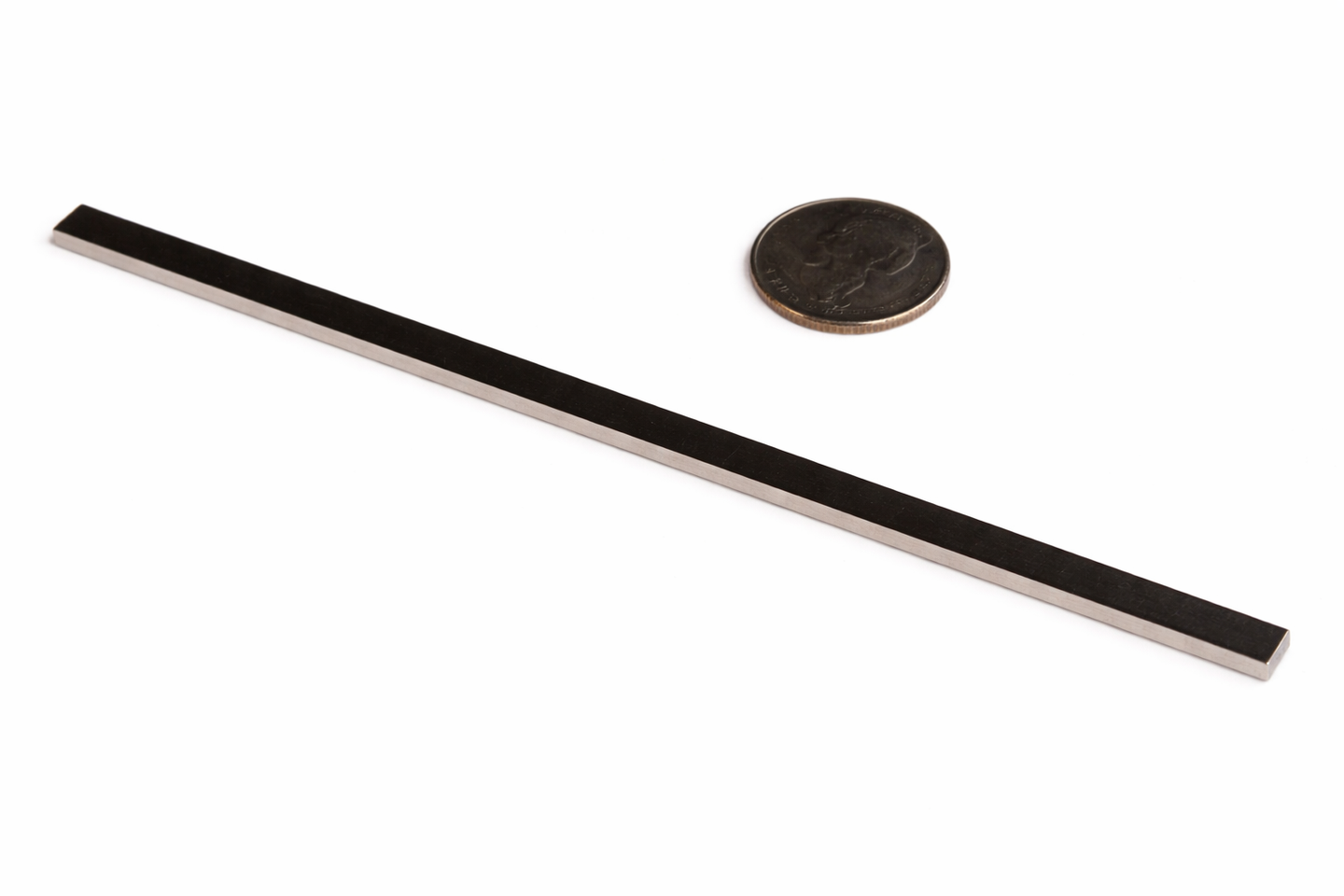

N42 Neodymium Plate Magnet 6" x 1/8" x 5/16" Thick Rare Earth NdFeB Magnet

Quick Facts

Attribute Value
Magnet Type Neodymium Rare Earth Plate Magnet
Grade N42
Shape Plate / Block
Length 6" (152.4 mm)
Width 1/8" (3.18 mm)
Thickness 5/16" (0.3125" / 7.94 mm)
Pull Force Approx. 28 lbs
Material NdFeB (Neodymium-Iron-Boron)
Coating Nickel-Copper-Nickel (Ni-Cu-Ni) Triple Layer
Magnetization Through Thickness
Br Max 13,200 Gauss
Certification ISO Certified

Quick Answers

Question Answer
How strong is this magnet? Approximately 28 lbs of pull force under ideal conditions.
Is N42 stronger than N35? Yes. N42 delivers greater magnetic strength than N40, N38, and N35 grades.
What is this magnet made of? Neodymium Iron Boron (NdFeB) rare earth material.
Which surfaces contain the poles? The north and south poles are located on the 6" × 1/8" faces.
What applications is it best for? Magnetic holding, fixtures, automation, sensor systems, cabinetry, engineering projects, and custom magnetic assemblies.

Product Overview

Neodymium magnets are the world's strongest commercially available permanent magnets. Super Magnet Store offers premium-quality N42 neodymium plate magnets manufactured to stringent quality standards using advanced production technology. These magnets provide reliable magnetic strength, consistent performance, and exceptional durability for industrial, commercial, and engineering applications.

This N42 neodymium plate magnet measures 6" x 1/8" x 5/16" and produces approximately 28 lbs of pull force under ideal conditions. Manufactured from neodymium, iron, boron, and other rare earth elements, it delivers stronger magnetic performance than N40, N38, and N35 grades.

Its Nickel-Copper-Nickel triple-layer coating provides excellent corrosion resistance and surface durability, while the long, narrow profile makes it ideal for applications requiring extended magnetic coverage in a compact design.

What Is a Neodymium Plate Magnet?

A neodymium plate magnet is a long, flat permanent magnet made from neodymium, iron, and boron (NdFeB). Plate magnets provide powerful magnetic force across an extended surface area, making them ideal for magnetic holding systems, fixtures, automation equipment, sensors, cabinetry, manufacturing, and engineering applications.

How Strong Is This Magnet?

This N42 neodymium plate magnet generates approximately 28 lbs of pull force under ideal conditions. Actual holding strength depends on steel thickness, surface finish, air gaps, operating temperature, and mounting configuration. With a Br Max rating of 13,200 Gauss, it provides dependable magnetic performance for industrial and commercial use.

Technical Specifications

Specification Value
Product Name N42 Neodymium Plate Magnet
Material Neodymium Iron Boron (NdFeB)
Grade N42
Shape Plate
Dimensions 6" × 1/8" × 5/16" (152.4 × 3.18 × 7.94 mm)
Coating Nickel-Copper-Nickel Triple Layer
Magnetization Direction Through Thickness (5/16")
Pole Orientation On the 6" × 1/8" Faces
Pull Force Approx. 28 lbs
Br Max 13,200 Gauss
Certification ISO Certified
Maximum Operating Temperature 176°F (80°C)

Note: Pull force is measured under ideal laboratory conditions using a clean, flat steel surface. Actual performance may vary depending on the application.

Magnet Grade Comparison

Grade Relative Strength Typical Applications
N35 Standard General-purpose magnetic assemblies
N38 Moderate Consumer products
N40 High Industrial equipment
N42 Higher Engineering and manufacturing
N45 Premium High-performance industrial assemblies
N48 Very High Heavy-duty applications
N50 Ultra High Advanced automation
N52 Maximum Maximum-performance industrial systems

Common Applications

  • Magnetic holding systems

  • Industrial fixtures

  • Cabinet and enclosure closures

  • Automation equipment

  • Sensor mounting

  • Manufacturing equipment

  • Engineering prototypes

  • Custom magnetic assemblies

Frequently Asked Questions

How much weight can this magnet hold?

This magnet provides approximately 28 lbs of pull force under ideal conditions. Actual holding capacity depends on the steel surface, alignment, air gaps, and installation method.

Is N42 stronger than N35?

Yes. N42 provides significantly greater magnetic energy and holding force than N35 magnets of similar size.

What direction is it magnetized?

The magnet is magnetized through the 5/16-inch thickness, with the north and south poles located on the 6" × 1/8" faces.

Can this magnet be used outdoors?

The Nickel-Copper-Nickel coating offers excellent corrosion resistance. For prolonged outdoor, marine, or high-humidity environments, additional sealing or a protective enclosure is recommended.

What is the maximum operating temperature?

This standard N42 magnet is designed for continuous operation up to 176°F (80°C). Temperatures above this limit may permanently reduce magnetic strength.

Do you offer wholesale pricing?

Yes. Contact Super Magnet Store for competitive wholesale pricing and volume discounts on N42 neodymium plate magnets.

Safety Notice

Neodymium magnets are extremely powerful and can snap together unexpectedly, causing pinch injuries or chipping. Handle with care and keep away from children, pacemakers, sensitive electronics, magnetic storage devices, and loose ferrous objects. Always review magnet safety guidelines before handling or installation.

Why Buy From Super Magnet Store?

  • Premium NdFeB rare earth magnets

  • Reliable N42 magnetic performance

  • Approximate 28 lb pull force

  • Strong 13,200 Gauss magnetic field

  • Nickel-Copper-Nickel triple-layer coating

  • ISO-certified manufacturing

  • Ideal for industrial holding, fixtures, and engineering applications

  • Wholesale pricing available

  • Superior quality and consistent performance guaranteed
