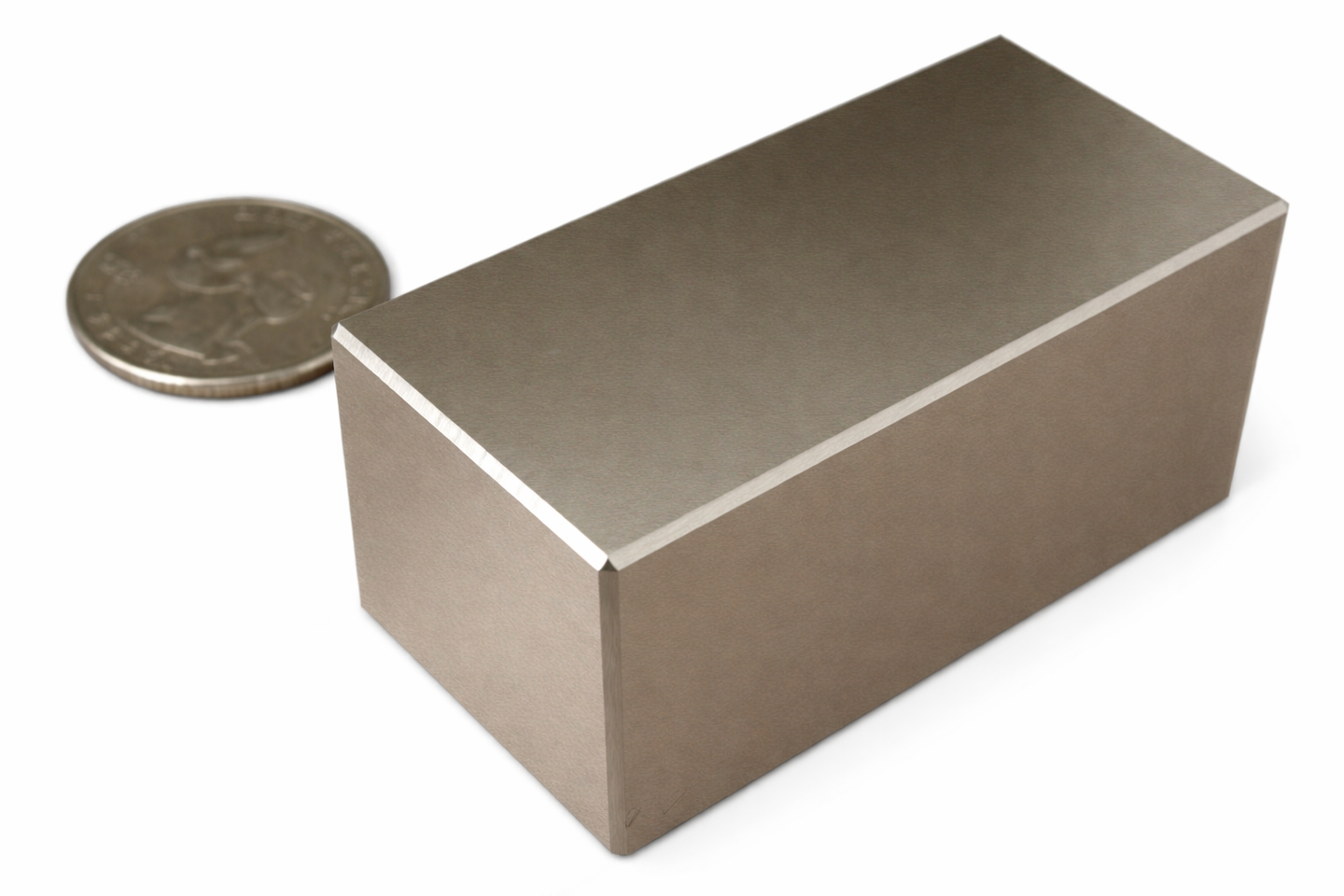

N42 Block Magnets 2 in x 1 in x 1 in – Heavy-Duty Rare Earth Magnet for Industrial Holding and Magnetic Fixtures
Engineered for demanding industrial and heavy-duty applications, this N42 block magnet delivers extreme holding force in a durable, compact form. Its large size and high magnetic grade make it ideal for secure clamping, precision jigs, magnetic lifting systems, and custom fixtures requiring maximum strength.
Key Features:
- Heavy-Duty Rare Earth Magnet: 2" (L) x 1" (W) x 1" (T) block for robust applications requiring maximum surface contact and strength.
- High Strength N42 Grade: BrMax of 13,200 gauss, providing strong, reliable performance superior to N40, N38, and N35 grades.
- Extreme Pull Force: Capable of holding over 155 lbs under ideal conditions.
- Triple Coated: Nickel-Copper-Nickel plating offers excellent corrosion resistance for indoor and limited outdoor use. Extended outdoor exposure may require additional sealing or housing.
- Magnetized Through Thickness: North and south poles on the two 2"x1" surfaces for stable, high-surface contact alignment.
Built for Heavy-Duty Industrial Applications
This N42 block magnet is designed for high-strength applications, including industrial clamping, magnetic lifting, precision jigs, and fixtures requiring exceptional holding power. The large block size ensures maximum surface contact, while the high-grade N42 material delivers reliable performance for demanding environments. Rated for temperatures up to 80°C (176°F), it maintains stability and magnetic strength under typical industrial conditions.Common Applications:
- Industrial magnetic lifting and retrieval systems
- Magnetic clamps and jigs for metal fabrication
- Secure tool holders and machine shop fixtures
- Magnetic separators and recovery systems
- Educational demonstrations requiring high-strength magnets
Technical Specifications
Property |
Specification |
Material |
Neodymium (NdFeB) |
Grade |
N42 |
Dimensions |
2.00" x 1.00" x 1.00" |
Pull Force |
Approx. 155 lbs |
BrMax |
13,200 Gauss |
Coating |
Nickel-Copper-Nickel |
Magnetization |
Through Thickness (1") |
Weight |
0.65 lbs |
Max Operating Temperature |
80°C (176°F) |
Frequently Asked Questions (FAQ)
How should I handle this high-strength magnet safely?
Due to its extreme strength, handle with care to avoid injury or pinching. Always keep away from electronics, pacemakers, and sensitive devices.
Can this magnet be used for industrial lifting?
Yes, its high pull force makes it suitable for many lifting and retrieval applications when used with proper safety measures.
Is it weather-resistant for outdoor use?
The triple plating provides excellent corrosion resistance. For extended outdoor exposure, consider additional protective housings.
How is it mounted for fixtures?
It can be embedded in steel housings or secured with high-strength adhesives. Avoid impacts that could cause chipping.
Superior Holding Power in a Compact, Heavy-Duty Design
From industrial clamping systems to magnetic retrieval tools, this N42 neodymium block magnet offers extreme strength, durability, and reliable performance for demanding environments. Use this heavy-duty rare earth magnet in fabrication shops, manufacturing lines, or educational labs where maximum magnetic force and stability are critical.
SKU: NB057-W3
- Regular price
- $ 100.00
- Sale price
- $ 44.00
