SKU: NB054-7

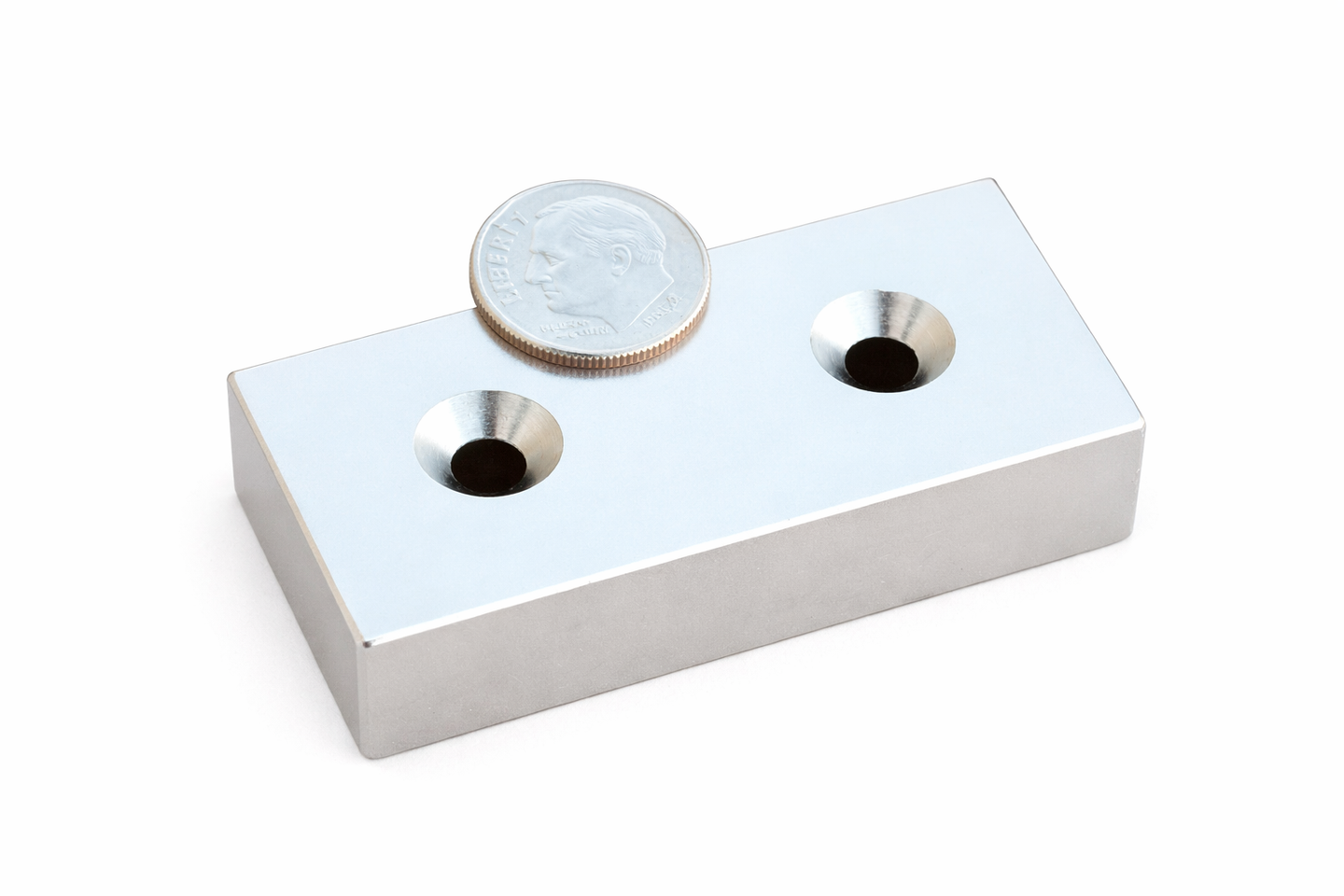

N42 Neodymium Magnets 2 in x 1 in x 1/2 in Bar w/2 Dual Countersunk Holes

$ 23.75
$ 23.75

∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors ∼ Top Grade Materials Only ∼ Quality You Can Trust ∼ Trusted By Thousands Of Vendors

N42 Neodymium Magnet with 2 Dual Countersunk Holes – 2" x 1" x 1/2" Thick Rare Earth Block Magnet

Quick Facts

Attribute Value
Magnet Type Neodymium Rare Earth Block Magnet with Countersunk Holes
Grade N42
Shape Block
Length 2" (50.8 mm)
Width 1" (25.4 mm)
Height 1/2" (12.7 mm)
Pull Force Over 72 lbs
Material NdFeB (Neodymium-Iron-Boron)
Coating Nickel-Copper-Nickel (Ni-Cu-Ni)
Magnetization Through Thickness
Br Max 13,200 Gauss
Certification ISO Certified & Licensed

Quick Answers

Question Answer
How strong is this magnet? Over 72 lbs of pull force under ideal conditions.
What screws fit the countersunk holes? #8 flat head screws.
What is the hole spacing? 1 inch center-to-center.
Is N42 stronger than N35? Yes. N42 is stronger than N40, N38, and N35 grades.
What is it commonly used for? Industrial mounting, machinery installation, cabinetry, woodworking, automation systems, and heavy-duty magnetic fastening.

Product Overview

Neodymium magnets are the world's strongest commercially available permanent magnets. Super Magnet Store offers premium-quality N42 neodymium rare earth magnets manufactured to stringent quality standards using advanced production technology. These magnets provide exceptional holding power, dependable performance, and long-term durability for industrial, commercial, and engineering applications.

This N42 neodymium block magnet measures 2" x 1" x 1/2" and features two dual-sided countersunk mounting holes for secure installation. Each hole is tapered 82 degrees on both sides and measures 0.355" x 0.195", making it compatible with #8 flat head screws. The holes are spaced 1 inch center-to-center for secure mounting and excellent load distribution.

Manufactured from neodymium, iron, boron, and other rare earth materials, this magnet delivers over 72 lbs of pull force under ideal conditions. The Nickel-Copper-Nickel triple-layer coating provides superior corrosion resistance and durability for demanding environments.

What Is a Countersunk Neodymium Magnet?

A countersunk neodymium magnet is a rare earth permanent magnet designed with recessed mounting holes that allow flat head screws to sit flush with the magnet surface. This design enables permanent, secure installation while maintaining maximum magnetic holding power.

How Strong Is This Magnet?

This N42 neodymium countersunk block magnet generates over 72 lbs of pull force under ideal conditions. Actual holding strength depends on surface material, thickness, air gaps, temperature, and mounting configuration. With a Br Max rating of 13,200 Gauss, it provides powerful holding force for industrial and commercial applications.

Technical Specifications

Specification Value
Product Name N42 Neodymium Block Magnet with 2 Dual Countersunk Holes
Material Neodymium Iron Boron (NdFeB)
Grade N42
Shape Block
Length 2" (50.8 mm)
Width 1" (25.4 mm)
Thickness 1/2" (12.7 mm)
Number of Holes 2
Hole Type Dual-Sided Countersunk
Countersunk Hole Size 0.355" x 0.195"
Countersink Angle 82 Degrees
Hole Spacing 1" Center-to-Center
Compatible Screw #8 Flat Head Screw
Coating Nickel-Copper-Nickel Triple Layer
Magnetization Direction Through Thickness (1/2")
Pole Orientation On the 2" x 1" Surfaces
Pull Force Over 72 lbs
Br Max 13,200 Gauss
Certification ISO Certified & Licensed
Operating Temperature Up to 176°F (80°C)

Note: Pull force is an estimate only and should be tested for your specific application.

Countersunk Magnet Features

Feature Benefit
Dual-Sided Countersunk Holes Allows mounting from either side
#8 Screw Compatibility Easy installation with standard hardware
1" Hole Spacing Improved load distribution
Flush-Mount Design Screw heads sit below the magnet surface
Strong N42 Grade High holding force and reliability

Applications by Industry

Industry Common Uses
Manufacturing Fixtures & tooling
Woodworking Hidden magnetic catches
Construction Mounted fastening systems
Industrial Equipment Machinery mounting
Automation Positioning systems
Marine & RV Secure closures and mounting
Engineering Product development

Common Questions About This Magnet

How much weight can this magnet hold?

This magnet provides over 72 lbs of pull force under ideal conditions. Actual holding capacity depends on the mounting surface, installation method, and application design.

What screws fit the countersunk holes?

The dual-sided countersunk holes are designed for #8 flat head screws.

What is the hole spacing?

The distance between hole centers is 1 inch.

Is N42 stronger than N35?

Yes. N42 magnets provide significantly greater magnetic strength and holding force than N35 magnets of the same dimensions.

Can this magnet be used outdoors?

The Nickel-Copper-Nickel coating provides excellent corrosion resistance, but additional protection is recommended for long-term outdoor exposure.

What direction is it magnetized?

This magnet is magnetized through the 1/2-inch thickness, with the north and south poles located on the 2" x 1" faces.

Do you offer wholesale pricing?

Yes. Contact Super Magnet Store for competitive volume pricing and wholesale discounts on neodymium rare earth magnets.

Why Buy From Super Magnet Store?

  • Premium NdFeB rare earth magnets

  • Dual-sided countersunk mounting holes

  • Compatible with #8 flat head screws

  • Powerful 72+ lb holding force

  • Nickel-Copper-Nickel triple-layer coating

  • ISO Certified & Licensed

  • Competitive pricing

  • Wholesale discounts available

  • Superior quality and performance guaranteed
